5.5HP Petrol Small Curb Cutting Machine Asphalt Curb Machine

FOB Reference Price:Get Latest Price
$1,500.00 - $2,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
LYS-1
Samples:
LYS-1
$1,720.00 /Set | 1 Set (Min. Order) | Buy Samples
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 Year
Applicable Industries:
Construction works , road construction
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Engine
Place of Origin:
China
Brand Name:
Double Birds
After-sales Service Provided:
Online support
UNIQUE SELLING POINT:
Long lifetime
Product name:
kerb machine
Radiating Way:
Water Cooling
Raw material:
cement, stone,
Start-up Mode:
Electric Start
Application:
road kerb making
road curb size:
Max height 200m, width 180mm
Packaging & Delivery
Packaging Details
wooden box packing
Port
Qingdao port

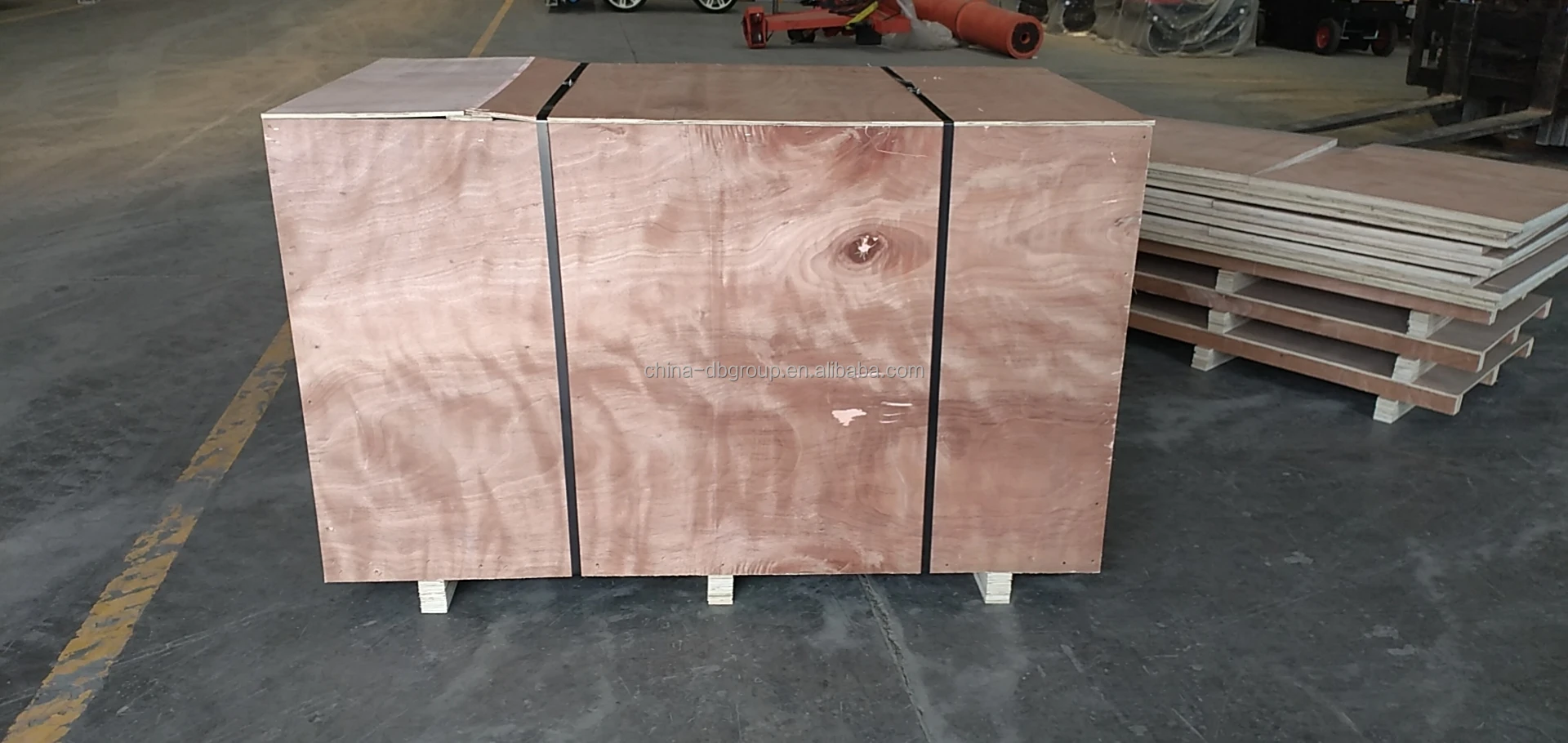

Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product Overview

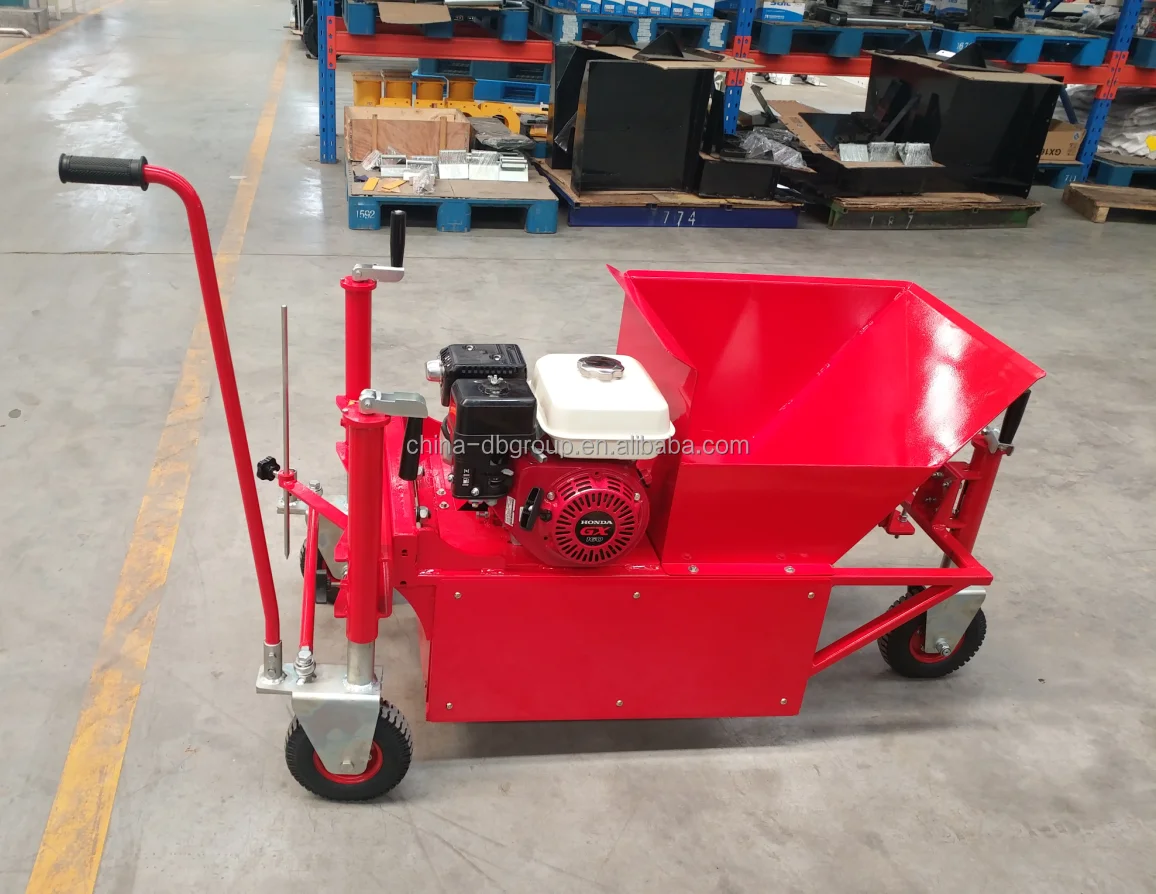

5.5HP Petrol Small Curb Cutting Machine Asphalt Curb Machine

Description:
This small machine is widely used in small roads, gardens, schools, communities and so on.
The machine has been exported to America, Australia, New Zealand, Iceland, Ukraine, Russia, Mexico, Chile, Thailand, South Africa, India and so on.
This small machine can produce small size kerb size (height≤200mm,width≤180mm), please choose the molds you want in the list.
The kerb size and shape can also be made by your requirement, if your have your own mold drawing, please send it to us, our engineer will design it by your demands.

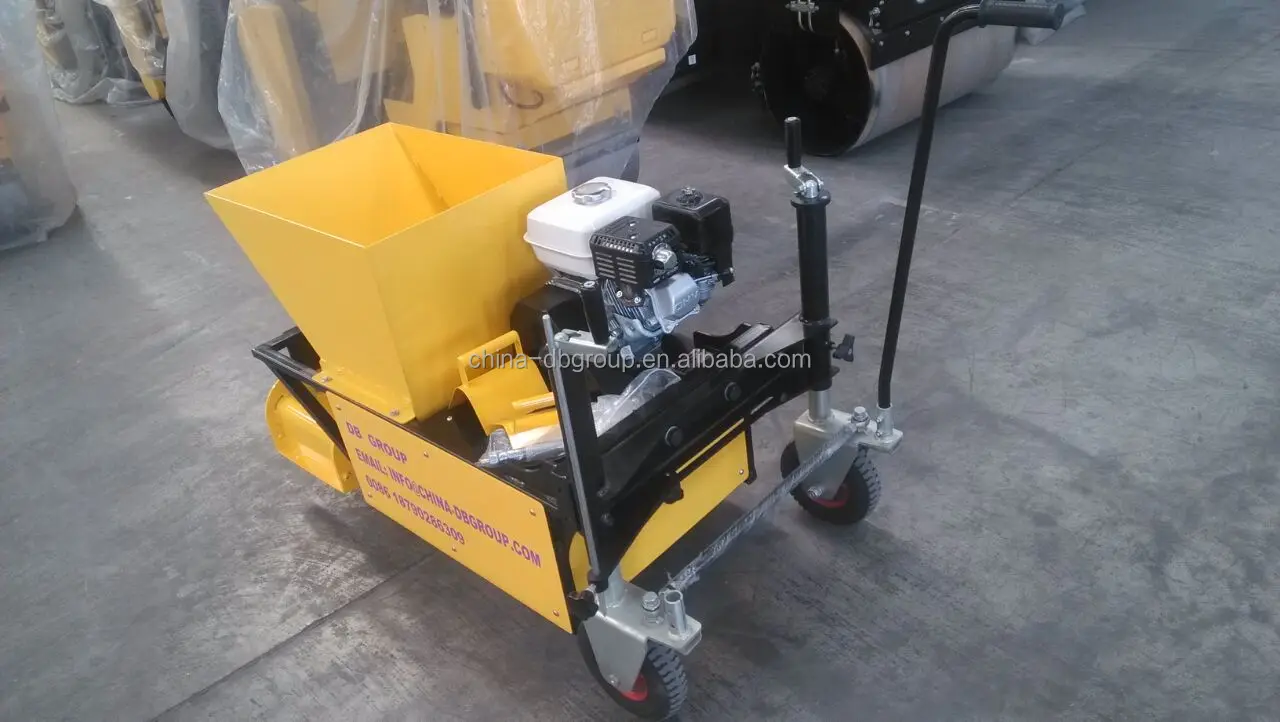

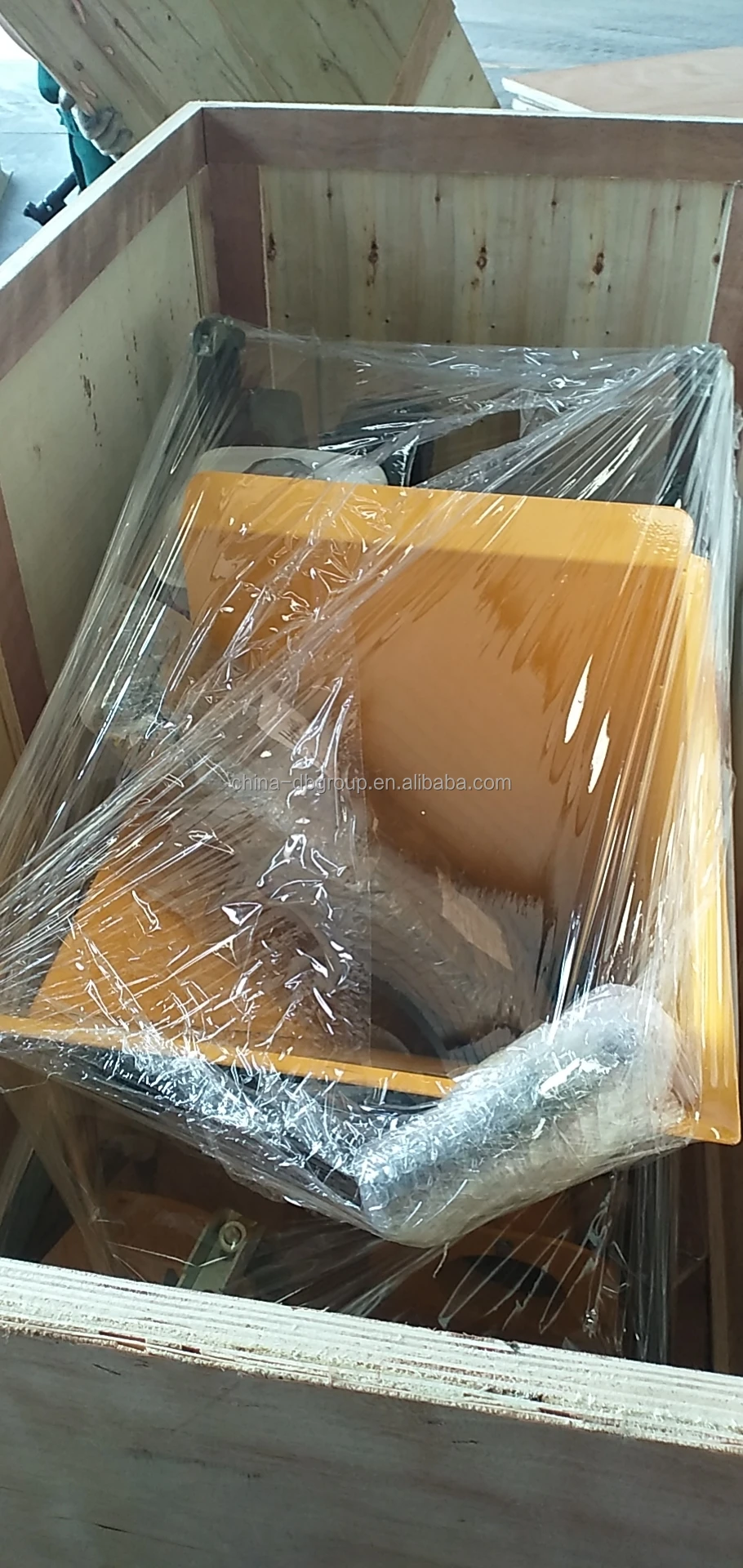

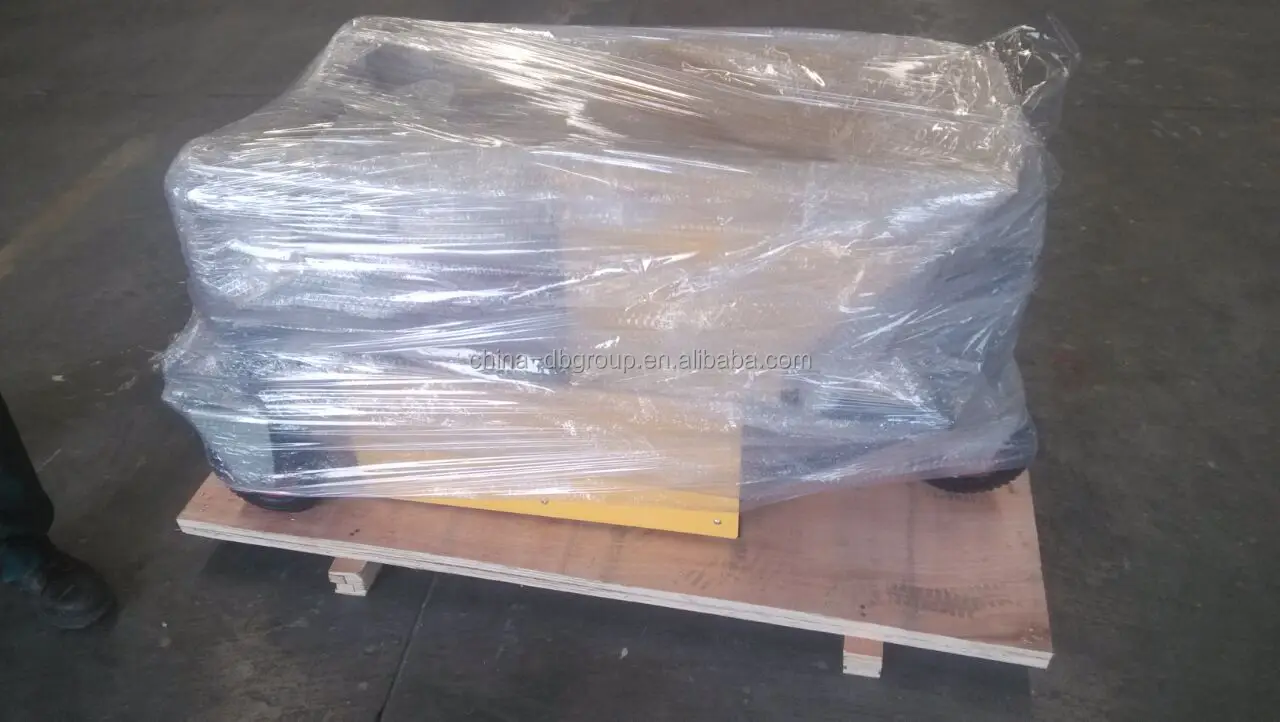

Delivery picture to America:

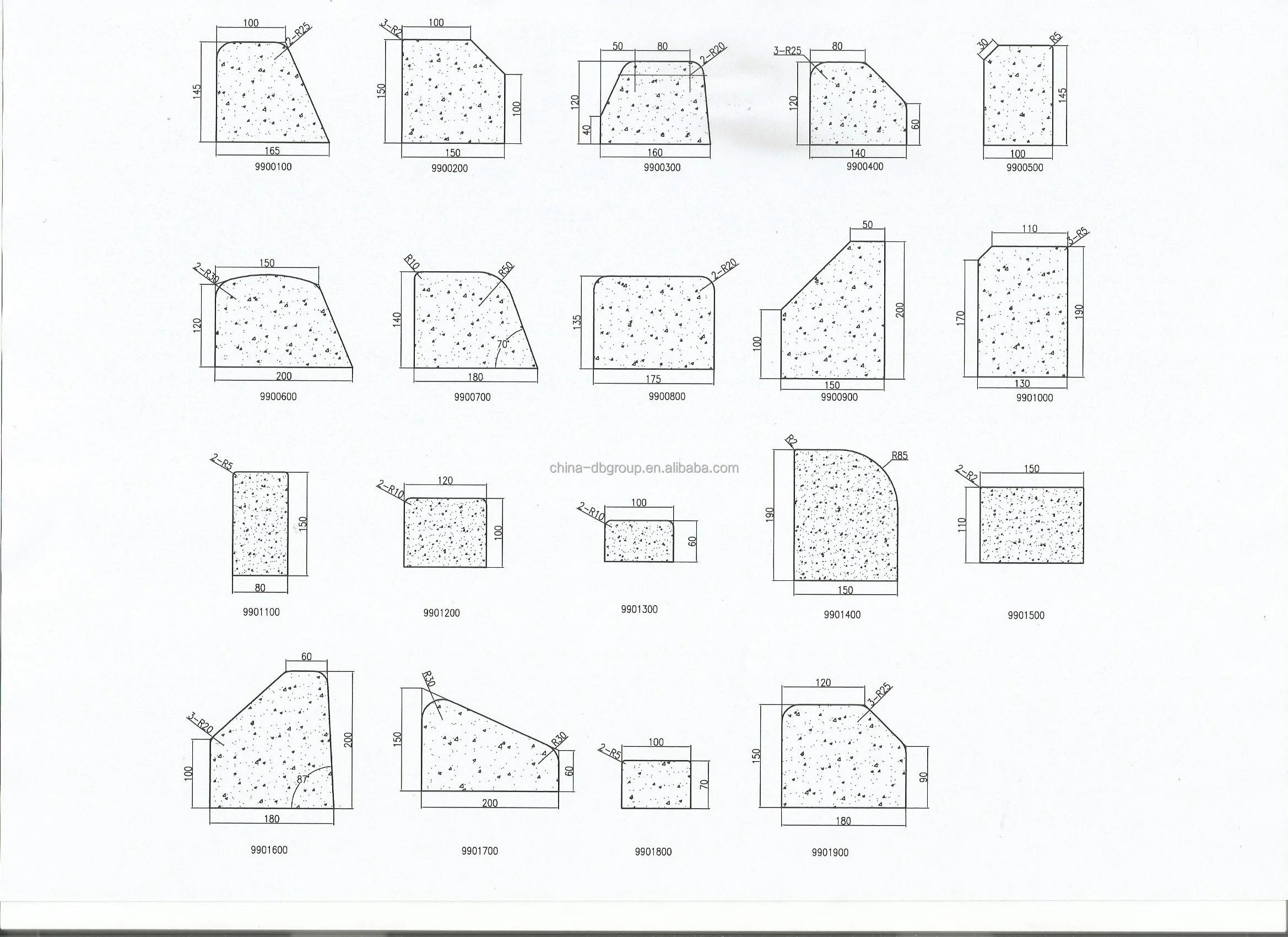

The picture of curb molds:
FEATURES AT A GLANCE
Features of 5.5HP Petrol Small Curb Cutting Machine Asphalt Curb Machine:
1, Matching with famous brand engine of imported HONDA gasoline engine, GX160 gasoline engine,5.5Hp/3600 rpm, so it has reliable
performance, easy to start-up.
2, Spiral feeding hopper, the counter force drives the machine backward walking.
3, Walking indicator to insure the correct direction.
4, Mold is easy to dismantle, and can be designed as per customer’s requirement.
5, Plastic treated, anti-rust and beautiful.
Right elevation
Left elevation

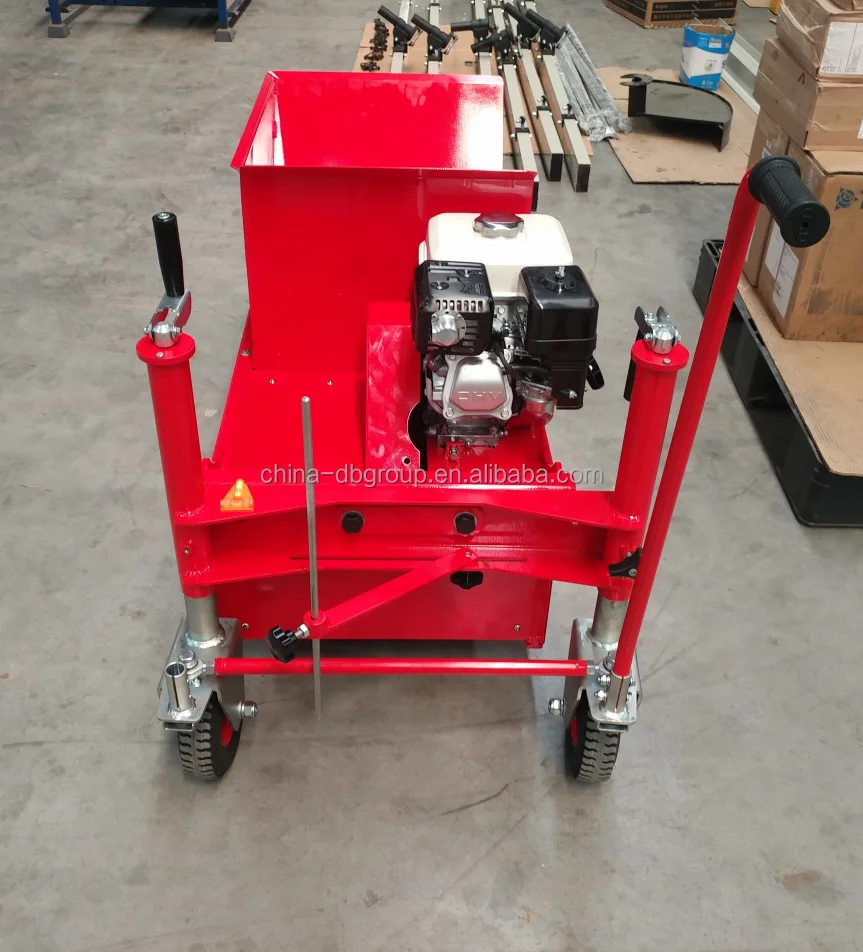

Front elevation
PRODUCT SPECIFICATIONS
Model
LYS-1
Working type
Walk-behind type
Working speed
1-2m/min
Mold size
height≤200mm, width≤180mm.
Engine model
HONDA GX160
Engine type
Gasoline engine, Air-cooled, 4stroke, Single cylinder
Engine power
5.5hp/3600rpm
Fuel tank volume
3.6L
Fuel consumption
313g/kWh
Lubricant L
0.6L
Size
1500*720*1100mm
Weight
150kg
Packing&Shipping
Packaging:
1.Standard seaworthy packing suitable for long-distance transportation.
2.All of the productions are inspected carefully one by one by QC before delivery.
Min. Order:
1.We can provide customized service for a minimum order quantity of 1 set.
2.Larger quantity, price will be more favorable.
SIMILAR PRODUCTS
Model
LYS-1
LYS-3
LYS-4
LYS-6
KB-20
Mold size
Width≤180mm
height≤200mm
Width≤250mm
height≤200mm
Width≤600mm
height≤400mm
Width≤900mm
height≤500mm
Width≤2000mm
height≤600mm
Working speed
1-2m/min
1—3m/min
1-5m/min
1—6m/min
0.9m-16m/min
Our Services
After sales service:
1, We can provide on-site delivery video to ensure that the machine performance is intact before shipment. We also provide English operating instructions and video operating instructions of this machine.
2, Our company will send professional engineers to guide with device installation, debugging and training operators until customers are fully satisfied. Moreover, we will design and manufacture products, according to the special requirements of customers.
FAQ

1.What is a concrete curb machine?

Concrete Curb Machines are industrial scale pieces of equipment that are designed to pour concrete in special shapes to quickly
create concrete objects such as curbs, gutters, barrier walls, sidewalks, ditches and more.
Power Curbers is the industry leader in slipform concrete curb and gutter machines. Our compact, nimble machines get your curbing
jobs done faster and more efficiently – even in tight spots.

2. What are common uses for concrete curbing machines?

Concrete curb machines from Power Curbers are used to quickly complete a huge variety of paving jobs, such as:
Subdivisions
Parking lots
Highway barriers
Sidewalks
Irrigation ditches
And more

3.How to study to operate this machine?

You may View the operation video to study how to operate it.

4.What is the price?

We offer a price range on the website, If you want to know the exact price, please inform us of the port of destination.
If you would like to know more about this concrete cement road curb kerb machine, please contact me.
