Hot Sale Pneumatic Conveyor Systems For Bulk

FOB Reference Price:Get Latest Price
$6,000.00 - $18,000.00 / Set | 1 Set/Sets (Min. Order)
Type:
Pneumatic vacuum conveyor
Load Capacity:
30T/H
Model Number:
Customized
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 28 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Width or Diameter:
160mm
Power:
55kw
Applicable Industries:
Farms, Food & Beverage Shops
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Material:
Carbon Steel
Material Feature:
Pneumatic vacuum conveyor
Structure:
Conveyor System
Place of Origin:
Henan, China
Brand Name:
DOUBLE BIRDS
Dimension(L*W*H):
1780*1060*1550 Mm
Certification:
ISO CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Motor
name:
gain Pneumatic vacuum conveyor
capacity:
30T/H
Pipe diameter:
160mm
max conveyor distance:
170m
max lift head:
30m
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box
Port
China port or named port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 28 To be negotiated
Product Description

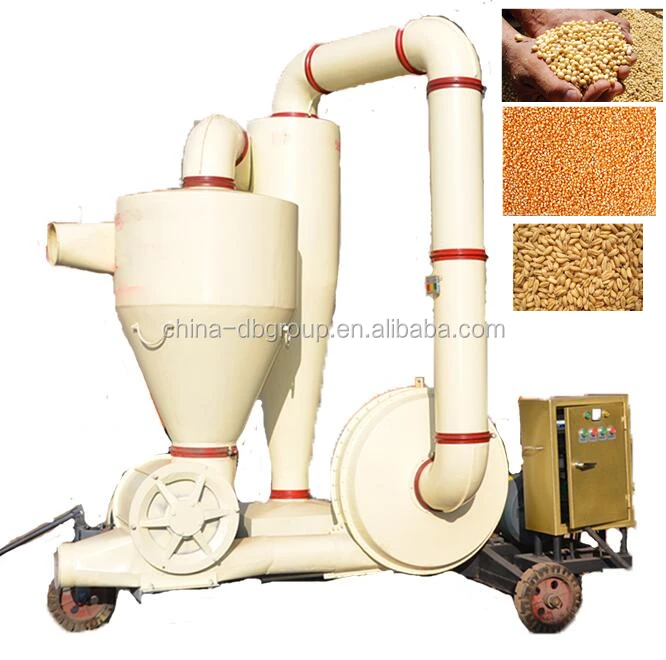

Hot Sale Pneumatic Conveyor Systems For Bulk
Main features of Hot Sale Pneumatic Conveyor Systems For Bulk:
1,This machine has various operation modes, including single suction operation mode, single pressure feed operation mode, and suction pressure mixed operation mode, which can be selected according to different customers and different operation requirements. 2,The machine is small and flexible, quick and easy to assemble, compact in structure and complete in functions. The design of the machine fully considers the needs of the user group. 3,The equipment has the characteristics of convenient, fast, labor-saving and people-saving. 4,Less dust pollution, flexible and convenient operation. 5,Only need to arrange the conveying pipeline as required, it can be horizontal, vertical, inclined and other comprehensive conveyance.
6,High air pressure, long conveying distance, high head, small volume, low noise and low energy consumption.

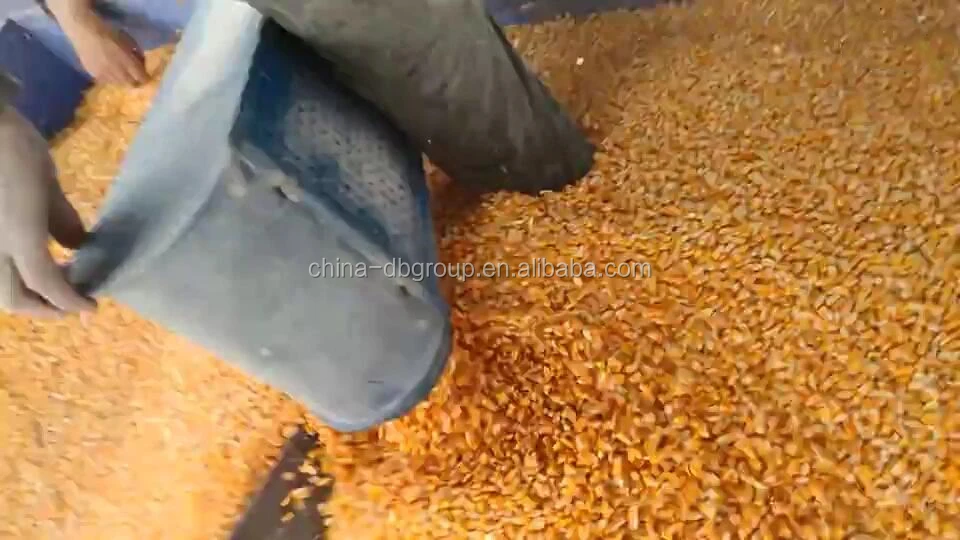

7,Use a special suction nozzle for local deep-grain suction. It can go deep into the grain layer and take food locally under 6 meters.
Introduction of Hot Sale Pneumatic Conveyor Systems For Bulk:
Grain Suction Machine is a kind of advanced material handling machinery. Grain Suction Machine is mainly used in warehouses, food processing plants, small tonnage dock for unloading bulk granular absorbing materials, such as wheat, rice, rice bran,corn, rapeseed, soybean, cottonseed, fodder, etc., can also be used to promote the granule-like fertilizers, plastics cement and other
handling, especially out of the warehouse transshipment operations applicable to storage of materials.
Product Paramenters
The main technical parameters:
Model
XL—3
XL--5
XL—10
XL--15
XL-20C
XL-30C
Maximum
Convey capacity(t/h)
3
5
10
15
20
30
Fan power(KW)
5.5
7.5
11
15
22
37
Air lock power(KW)
0.75
0.75
0.75
1.1
1.1
1.5
Total power of the machine(KW)
6.25
8.25
11.75
16.1
23.1
38.5
Fan speed(rpm)
3300
3600
4100
3700
4100
4100
Air lock speed(rpm)
60
60
60
60
60
60
Air pressure(water column/mm)
940
1000
1500
1600
2200
3300
Air flow(m3/h)
780
800
1000
1600
1800
1800
Airflow speed (m/s)
26
24
24
25
25
25
Feeding tube diameter (mm)
124
124
150
150
160
160
Conveying pipe diameter (mm)
70
100
124
150
160
160
Horizontal maximum conveying distance (m)
20
30
50
70
120
170
Maximum suction distance (m)
6.5
8.5
10
20
30
50
Maximum lift distance (m)
5
5
8
12
18
30
Machine weight(kg)
400
415
460
530
600
900
Dimension(mm)
(length * width * height)
1780*
1050
*1550
1780*
1058
*1550
1780*
1058
*1550
2080*
1148
*1800
2320*
1320
*2720
2380*
1600
*2720
Feature






Iron pipe







Steel wire hose
Advantage of Hot Sale Pneumatic Conveyor Systems For Bulk:
This machine is equipped with steel wire hose and iron pipe, combination of hose and iron pipes will help you convey the materials easily.
The machine is with those advantages: high efficiency, low energy consumption, small pollution, small footprint, low cost, easy to connect and self-control characteristics.
Related Products
Packing&Shipping
Wooden box package
After Sales Service
Training how to instal the machine, training how to use the machine.
Company Profile
Photos of our company participating in the exhibition:
Picture of customers visiting:
Contact Us
If you want to know more about this machine, please contact me.
